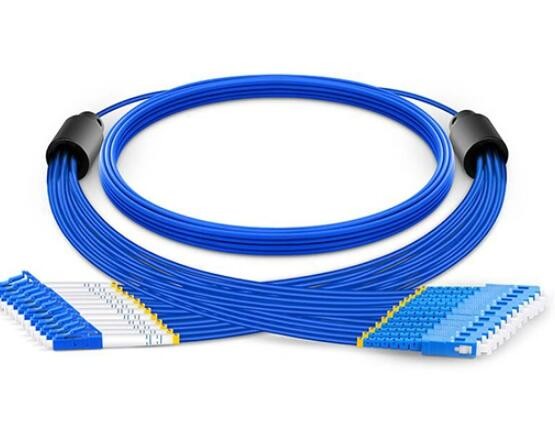

Armored Fiber Optic Patch Cable 6 Core OS2 E2000 To E2000 Single Mode High Density

Armored Fiber Optic Patch Cable 6 Core OS2 E2000 To E2000 Single Mode High Density

Description:

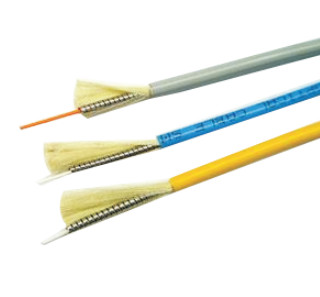

Armored Patch cord is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector.

The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords;

they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.

Specification:

Connector	SC,FC,LC,ST,MU,E2000,MTRJ
Polishing	SM/UPC	MM/PC	SM/APC
Insertion Loss (max)	≤0.30dB	≤0.30dB	≤0.30dB
Return Loss (min)	≥50 dB	≥35 dB	≥60 dB
Tensile Strength(N)	Longterm 100;short term:200
Crush Resistance(N/100mm)	Longterm 3000;short term:5000
Durability	<0.20 dB typical change, 500 matings
Repeatability	≤0.1dB
Storage , Operating Temperature °C	-40~+85
