    SC APC Optical Fiber Pigtail Single Mode 3 Meter Length

    Ask Lasest Price
    Brand Name :
    Model Number : SC/APC SM Fiber Optical Pigtials
    Certification : CE Rohs SGS ISO
    Price : Price : Negotiable
    Payment Terms : Payment Terms:T/T, L/C,paypal,Western Union
    Supply Ability : Supply Ability :300000pcs/month
    Delivery Time : Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
    • Product Details
    • Company Profile

    SC APC Optical Fiber Pigtail Single Mode 3 Meter Length

    Optical Fiber Pigtail SC APC Single Mode LSZH Pigtail 0.9 / 2.0 / 3.0mm Avaiable


    Product description:


    Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable.

    The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


    Fiber Patch Cable Options:


    1) Connector type: FC, SC, LC, ST
    2) Ferrule End-face: PC, UPC, APC
    3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores,etc
    5) Cable Diameter: 3.0mm,2.0mm,0.9mm
    6) Cable Length: 1, 2, 3 meter or
    7) Cable type: PVC, LSZH, OFNP

    specification:


    Technical specification:
    Fiber TypeSMMM
    Cable Diameter(mm)Ф0.9,Ф2.0,Ф3.0
    End-face FinishingPCUPCAPCPC
    Insertion Loss(dB)≤0.30
    Return Loss(dB)≥50≥55≥60≥28
    Operating Wavelength(nm)1310;1550850
    Exchangeability(dB)≤0.20
    Repeatability(dB)≤0.10
    Operating Temperature(℃)-40 ~ +75
    End Face GeometryROC:10-25(PC/UPC) 5-12(APC)
    Offset::0-50um
    Fiber Height: -100 to +100nm
    Angle:8±0.3(APC)

    Products Pictures

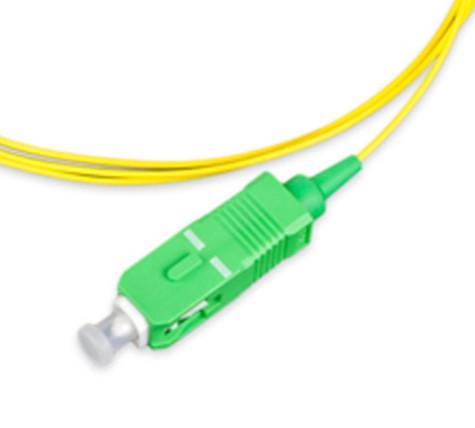

    SC APC Optical Fiber Pigtail Single Mode 3 Meter Length


    Application:


    1. Telecommunication Networks
    2. CATV Networks
    3. Active Device Termination
    4. Local Area Networks


    Shipping:

    1. Door to Door: by express (DHL, UPS, TNT)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea : shenzhen port
