Aramid Fiber Optic Cable 12 Core , Cctv PVC Distribution Fiber Cable

12 Core Indoor Distribution Optical Fiber Cable Cctv Cable LSZH / PVC Outer Sheath

Description:

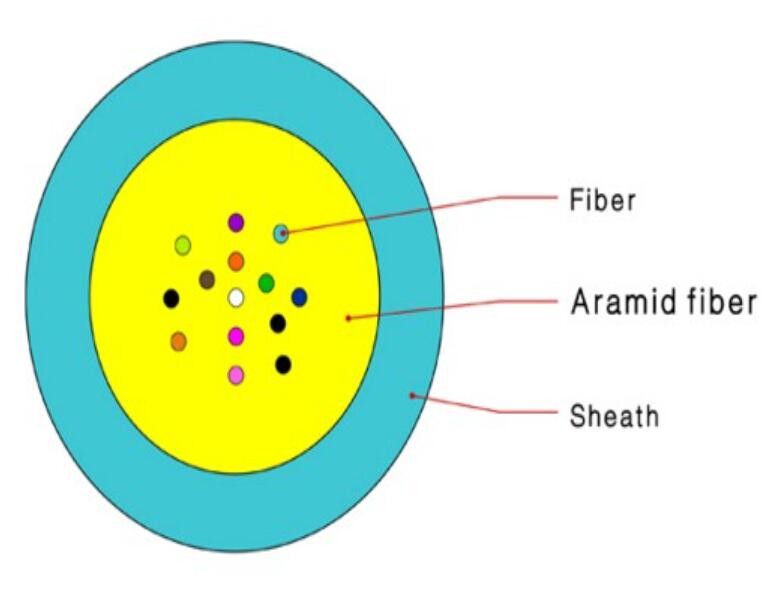

Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.

Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft. Direct splicing between tight buffered cables and need no tie-in box or pigtail.

Specification:


		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	850nm			≤3.0dB/km	≤3.0dB/km
	1300nm			≤1.0dB/km	≤1.0dB/km
	1310nm	≤0.36dB/km	≤0.36dB/km
	1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	850			≥500MHZ·km	≥200MHZ·km
Bandwidth (Class A)	1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Aramid Fiber Optic Cable 12 Core , Cctv PVC Distribution Fiber Cable
